Scenarion for Savable DataPage For Fetching and Saving Updated Data Back to DB.

-

 Hi All,

In this Blog we will see real time implementation of Savable Data Page.


1) DEV Studio ---> Data Types --->Add data type



2) Add Data Type ---> Label = TVSerialDetails


Parent class =>  HDFC-HDFCAuto-Data

Add to ruleset = HDFCAuto


3) Go To Data Type ---> Click on Add field Button

Add field according to requirement.

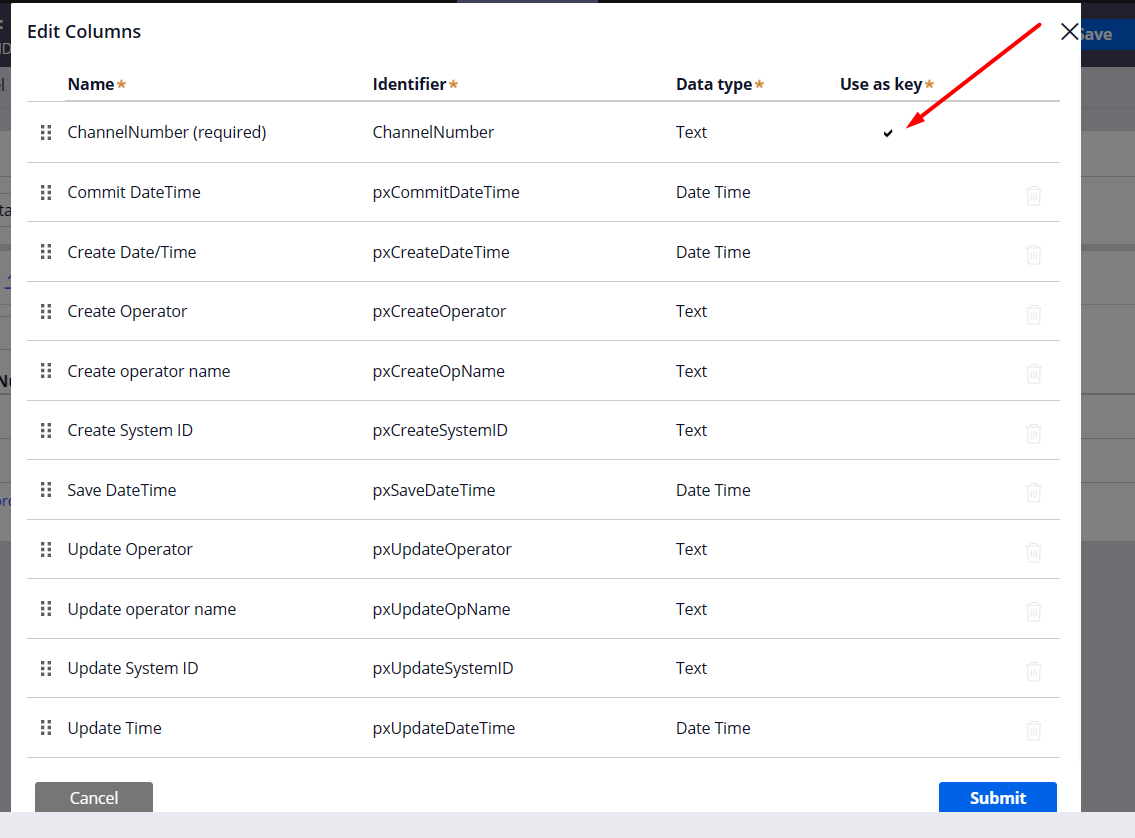

4) Now Go to Records Tab ---> Actions Button --->Edit Columns

Make one field as Primary according to requirement.



5) In Sources Tab we can see 3 data pages automatically created by PRPC


a) Read-Only  Data Page ---> Page list structure --->Source = Report definition

This data page does not have any parameter defined


b) Savable Data Page ----> Page Structure ---> Source = Lookup ; Data save options = Database save

Savable Data Page also have parameter, i.e primary key


c) Read-Only Data Page ---> Page Structur ---> Source = Lookup

This data page also have parameter, i.e primary key



6) Put some test data for testing purpose


7) Now, go to case type and stage--->process--->Add Step




8) Now open Process


9) Open Connector Property dialog box, by clicking outward connector.

Now give flowaction name and click on glass icon to open/create a rule



10) In Flow Action in Layout tab,

Page context = Use current page context

Applies to = Work Class

Section Name = ViewUpdateTVChannelDetails

click on glass icon to open/create section rule




11) Before Adding controls in section, Create a Page property in Work Class and give page definition class as Data Class





12) Now, go back to ViewUpdateTVChannelDetails Section and add controls

a) Dropdown   Property = PageName.PropertyName    Source = Data Page  D_TVSerialDetailsList


b) Embed section By name

Source => ChannelDetailsUpdate {Section}

Page context = Data Page

Context value  = D_TVSerialDetailsSavable

Parameter = pyWorkPage.TVChannelDetails.ChannelNumber










13) In ChannelDetailsUpdate {Section} add control and set property



14) Now come back to our Flow Action = ViewUpdateTVChannelDetails

Actions tab ----> Post-processing

Savable data pages

Give When rule = ChannelNumberExist

according to requirement

Data Page = D_TVSerialDetailsSavable

Parameters = Primary.TVChannelDetails.ChannelNumber





15) Now go back to flow and save your flow.





16) Go to Case type --> Refresh ---> Save--->Save and Run

17) Select value from dropdown And update Channel name hit submit












18) Now Go to data type to check updated value
